GEOVISION
Precision CPT Interpretation for Offshore Engineering
Built on a powerful backbone of the CASK Software suite: GEOVISION is the next generation of raw Cone Penetration Test (CPT) interpretation software. Designed specifically for the rigorous demands of offshore structures—including LPA and Foundation design—GEOVISION transforms raw CPT data formats directly from the site investigation vessels (e.g. AGS, GEF, and CSV) data into actionable geomechanical insights with unparalleled speed and accuracy.
€2,050 / per year*
*Based on a single user license
Features
- Automated Data Ingest
- Advanced Soil Profiling
- Professional plots
- Digital data output
- Fast & Reliable
- Export to PDF
- Informative Plotting
- Batch Analysis
Extremely FAST

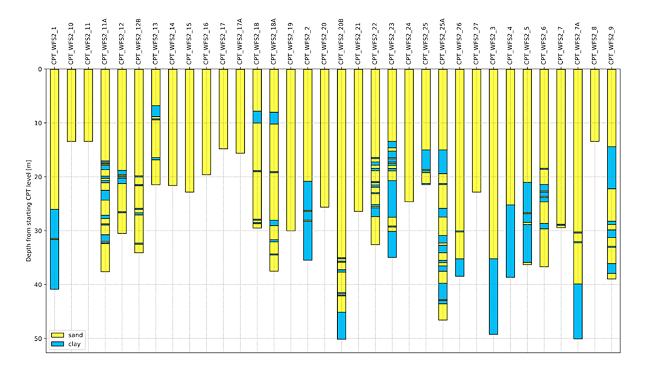

Ground Model Build-up Entire WindFarm in Just SECONDS!
Bespoke software for offshore industry since 2012
About GeoVision

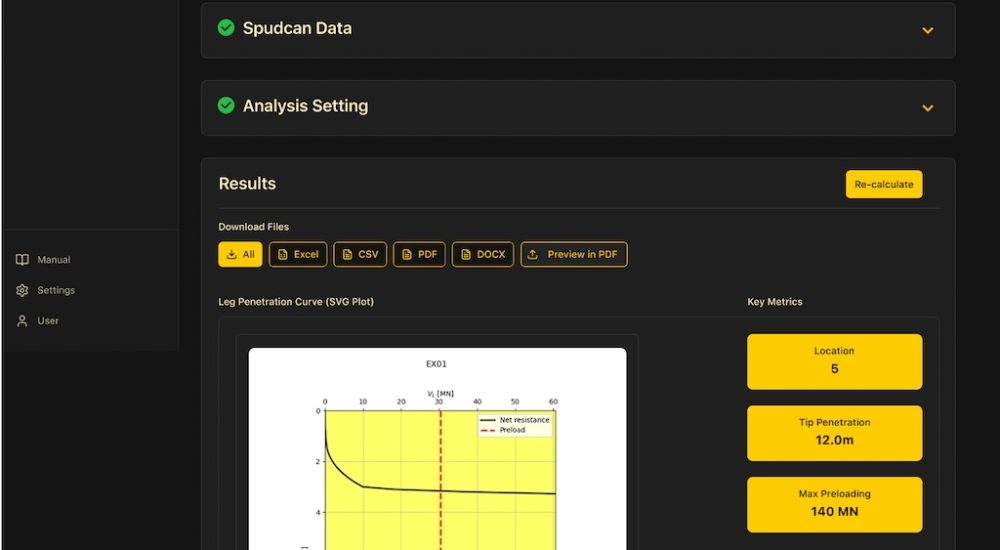

Spudpen is a specialised calculation engine designed to assess the leg penetration behavior of independent jack-up rigs during preloading operations.Spudpen is a critical tool for offshore geotechnical engineers to ensure the stability and safety of jack-up platforms.
About GeoVision
GEOVISION is designed to work and integrated with SPUDPEN and CAISSON, providing the input soil profiles for SPUDPEN and CAISSON to streamline the analysis from raw CPT data to fully assessed LPA analysis and foundation design.
Robust Ground Modeling & Profiling
- Automated Data Ingest: Seamlessly import industry-standard formats: AGS, GEF, and CSV.
- Advanced Soil Profiling: Generate detailed soil profiles and ground models using both non-normalized and normalized Soil Behaviour Type (SBT) charts.
- Professional Reporting: Export high-fidelity charts and technical reports ready for design analysis.
Comprehensive Data Output
GEOVISION provides a full spectrum of interpreted geomechanical parameters, including:
- Net Cone Resistance and Friction Ratio.
- Hydraulic Conductivity and Constrained Modulus.
- Soil Sensitivity and Fines Content .
- Young’s Modulus and Poisson’s Ratio.
Integration with the suite tools e.g. Spudpen and Caisson_VHM
GEOVISION is designed to work and integrated with SPUDPEN and CAISSON, providing the input soil profiles for SPUDPEN and CAISSON to streamline the analysis from raw CPT data to fully assessed LPA analysis and foundation design.
Whats in GeoVision?
Import RAW CPT
Import AGS
Import GEF
Import CSV
Multi-Method Geomechanical Interpretations
Soil Behaviour Type Index
- Robertson & Wride (1998)
- Robertson (2010)
Relative Density (Sands)
- Jamiolkowski (2003)
- Baldi (1986)
Shear Wave Velocity
- Robertson (2009)
- Mayne (2006)
- Robertson & Cabal (2015)
(max) Shear Modulus
Small strain modulus derived via
- Vs (interpreted)
- Poisson’s ratio and E
Friction Angle
- Kulhawy & Mayne (1990)
- Schmertmann
- Mayne (2006) for fines
Small
Handle complex geological conditions with multiple soil layers
Undrained Shear Strength
LE, BE and UE based on Nkt
Overconsolidation Ratio
- Robertson (2009)
- Mayne (2019)
- Pre-consolidation stress ratio
Consolidation Coefficient
- Robertson (2015)
- Direct interpretation
Bespoke software for offshore industry since 2012
Models & Capabilities
Built by geotechnical engineers for geotechnical engineers.
Our software is designed to save you time and increase efficiency.
1. Import RAW CPT Data
You can import a vast majority of well know RAW CPT data files into GEOVISION. Just upload them. Hit Enter. Done.
- AGS
- GEF
- CSV
- ASC

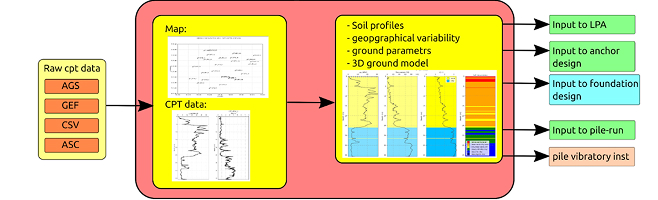

2. Input / Output for
You can use GEOVISIONs data as input for various other programmes, designs and tools:
- Input to LPA
- Input to Anchor Design
- Input to Foundation Design
- Input to Pile Run
- Pile vibratory installation
3. Dynamic Pile Run Assessment
Dynamic pile run assessments are done based on Alm & Hamre (2001) Soil Resistance to Driving (SRD). The dynamic pile run assessment is done based on the inertia of the pile, the hammer weight, energy per blow and the pile geometry.
- Flexible Spudcan Geometry:
Software Suite For Geotechnical Engineers
Versatile Pricing
Below mentioned are starting license fees per year and can differ for SPUDPEN, CAISSON_VHM and GEO VISION.
Please contact us for exact pricing per solution or tailored to your needs.
Tier 1: Single User
Freelance / Individual
€2,475 / per year for 1 license
- 1 User License
- Cloud Calculations
- Cross-Platform / Browser
- 800+ Pages of Documentation
- Free Technical Support
- Free Updates
- 12 Months Access
- Hands-on training (optional)
Best Value
Tier 2: Multi User
SME / Teams
Get Quote / for your team
- Including All Features of Tier 1
- Minimum of 5 floating seats (more possible)
- Batch-mode analysis
- Multi User / Network License
- Free Updates
- Free Technical Support
- 12 Months Access
- Hands-on training (optional)
Tier 3: Enterprise
SME / Teams
Custom / let us know, we have options
- Including All Features of Tier 2
- Adjustable Floating Seats
- Batch-Mode analysis (extended)
- Integration: GeoVision + Caisson VHM
- Custom Integrations e.g. API (optional)
- Free Updates + Technical Support
- 12 Months Access
- Hands-on training (optional)
If you need additional services like training, consultancy and custom integrations, please let us know and contact us.
Ready to Steamline Your LPA Workflow?
Contact us for a quote tailored to your needs. Single user and multi-user licenses available.
